$14,799.00

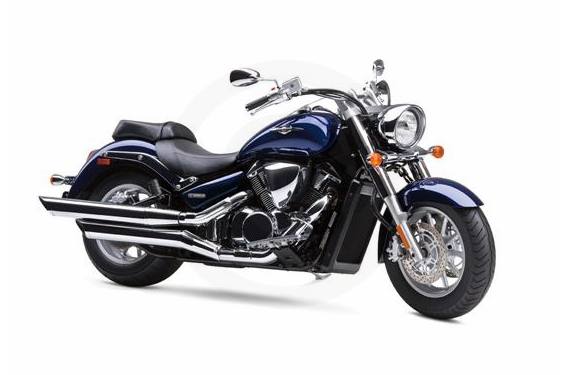

2009 Suzuki Boulevard C109R
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

You've never seen - or experienced - a classic cruiser like this. Introducing the Suzuki Boulevard C109R. It combines classic cruiser styling with renowned Suzuki V-twin power in such a striking way that it establishes a new standard for the class- and completes the Suzuki Boulevard line of cruisers. The key to the C109R's performance is its 109-cubic-inch engine with Suzuki fuel injection- the same basic powerplant used by the awesome M109R, which traces its technological heritage to Suzuki's championship winning GSX-R supersport bikes.


One ride on the C109R and you'll notice that it boasts its own power characteristics, with more torque down low for extraordinary acceleration. The C109R establishes its own identity with its styling. It has pullback handlebars, floorboards that let you kick your feet out, a spacious, relaxed riding position and its own slash-cut mufflers. For maximum open-road comfort, check out the touring versions - the C109RT AND C109RSE, with a standard windshield, saddlebags, passenger backrest, engine guards and light bar.


The 2009 Boulevard C109R, C109RSE and C109RT: each a king among classic cruisers.

    Key Features
    • Innovative and classic design combines the clean, sweeping good looks of a classic cruiser with high performance provided by Suzuki advanced technology
    Engine Features
    • 1783cc, 8-valve DOHC, 54 degree, liquid-cooled, fuel injected V-twin engine designed for strong throttle response and massive torque output
    • 112mm bore and 90.5mm stroke utilizing forged aluminum alloy pistons with short skirts, and cut away sides riding on chrome moly steel connecting rods
    • Unique new two-stage cam drive system creates a compact cylinder head design and reduces overall engine height and creates a lower center of gravity
    • Each bore is lined with Suzuki's race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight
    • Crank inertia for the C109R is designed for increased torque delivery at low speed and for reduced vibration across the rpm range
    • A compact dry sump lubrication system SASS (Suzuki Advanced Sump System) provides reduced engine height, a lower crankshaft position and lower center of gravity
    • Five speed transmission features carefully selected gear ratios for comfortable cruising in a variety of riding situations
    • Three piece airbox uses dual intakes working through a pleated fabric air cleaner element
    • The 2-into1-into2 stainless steel chromed exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and powerful v-twin sound
    • Electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 52mm throttle bodies - maintains optimum air velocity for smooth low-to-mid range throttle response
    • A new Idle Speed Control (ISC) system improves cold starting and stabilizes engine idle speed in various conditions
    • Dual spark plug per cylinder ignition system is controlled by the powerful 32 bit ECM for improved combustion efficiency and reduced exhaust emissions
    Chassis Features
    • High-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride
    • Cast alloy wheels feature a 10 spoke radial design for a clean and classic look. The cast wheels measure a 3.50 x 16 inch up front and a massive 8.00 x 16 inch rear tire wearing a huge 240mm radial tire
    • Combined braking system utilizes three pistons per caliper for the dual disc front braking system. When applying the front brake lever two pistons work at the front. When using the rear brake pedal both front brake and rear brake systems are combined using the rear brake and the middle piston of the front brake calipers through a delay valve.
    • Stylish pull back type handlebars feature a deep chrome plated finish and a beautiful wide design for a massive look
    • 49mm front forks feature thick chrome covers for a stylish new look and feature 130mm of wheel travel
    • Link type aluminum swingarm creating a rigid tail look with light weight and high rigidity
    • Stylish and wide fuel tank design is built highlight the classic lines of the C109R with a large 5 gallon fuel capacity for maximum rider enjoyment
    Specifications
    • Engine: 1783 cc (108.8 cu. in), 4-stroke, liquid-cooled, DOHC, 54° V-twin
    • Bore Stroke: 112.0 mm (4.409 in) x 90.5 mm (3.563 in)
    • Compression Ratio: 10.5 : 1
    • Fuel System: Fuel injection
    • Lubrication: Semi-Dry sump
    • Ignition: Electronic ignition (Transistorized)
    • Transmission: 5-speed constant mesh
    • Final Drive: Shaft Drive
    • Overall Length: 2580 mm (101.6 in)
    • Overall Width: 985 mm (38.8 in)
    • Overall Height: 1150 mm (45.3 in)
    • Seat Height: 705 mm (27.8 in)
    • Ground Clearance: 135 mm ( 5.3 in)
    • Wheelbase: 1755 mm (69.1 in)
    • Curb Weight: 380 kg (838 lbs)
    • Suspension Front: Telescopic, coil spring, oil damped
    • Suspension Rear: Link type, coil spring, oil damped
    • Brakes Front: Disc brake, twin
    • Brakes Rear: Disc brake
    • Tires Front: 150/80R16M/C 71V, tubeless
    • Tires Rear: 240/55R16M/C 86V, tubeless
    • Fuel Tank Capacity: 19.0 L (5.0/4.2 US/Imp gal)
    • Color: Black, Blue

    Specifications

    Engine
    Engine Type 4-stroke, liquid-cooled, DOHC, 54° V-twin
    Displacement 1783 cc (108.8 cu. in.)
    Bore and Stroke 112.0 x 90.5 mm (4.409 x 3.563 in.)
    Cooling Liquid-cooled
    Compression Ratio 10.5 : 1
    Fuel System Fuel injection
    Ignition Electronic ignition (Transistorized)
    Chassis
    Front Suspension Telescopic, coil spring, oil damped
    Front Brakes Disc brake, twin
    Front Tire 150/80R16M/C 71V, tubeless
    Rear Suspension Link type, coil spring, oil damped
    Rear Brakes Disc brake
    Rear Tire 240/55R16M/C 86V, tubeless
    Dimensions
    Dry Weight 838 lbs. (380 kg)
    Fuel Capacity 4.2 gal (19.0 l)
    Wheelbase 69.1 in. (1755 mm)
    Seat Height 27.8 in. (705 mm)
    Transmission
    Transmission 5-speed constant mesh
    Final Drive Shaft Drive
    General
    Colors Black, Blue

    Compare Models

    		 Print








    Year 2009
    Manufacturer Suzuki
    Model Boulevard C109R
    Style Cruiser
    MSRP* $14,799.00
    Chassis
    Front Suspension Telescopic, coil spring, oil damped
    Front Brakes Disc brake, twin
    Front Tire 150/80R16M/C 71V, tubeless
    Rear Suspension Link type, coil spring, oil damped
    Rear Brakes Disc brake
    Rear Tire 240/55R16M/C 86V, tubeless
    Dimensions
    Dry Weight 838 lbs. (380 kg)
    Fuel Capacity 4.2 gal (19.0 l)
    Wheelbase 69.1 in. (1755 mm)
    MPG
    Seat Height 27.8 in. (705 mm)
    Trail
    Rake
    Engine
    Engine Type 4-stroke, liquid-cooled, DOHC, 54° V-twin
    Displacement 1783 cc (108.8 cu. in.)
    Bore and Stroke 112.0 x 90.5 mm (4.409 x 3.563 in.)
    Cooling Liquid-cooled
    Compression Ratio 10.5 : 1
    Fuel System Fuel injection
    Ignition Electronic ignition (Transistorized)
    General
    Speedometer
    Tachometer
    Odometer
    Colors Black, Blue
    Warranty
    Transmission
    Transmission 5-speed constant mesh
    Final Drive Shaft Drive
