Suzuki SV650SF ABS MIDWEST HONDA SUZUKI KUBOTA SIOUX CITY, IA (800) 736-7956

Showcase » Suzuki » SV650SF ABS

	Starting At: $7,999.00

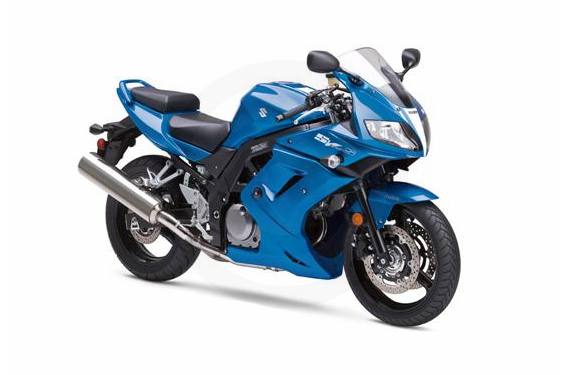

2009 Suzuki SV650SF ABS

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Blue

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Key Features

Antilock Brake System (ABS) monitors brake lever input and wheel speed, and matches stopping power to available traction

Engine Features

Twin spark plug cylinder heads for optimum combustion and reduced emissions.
Compact 645cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power
90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact
Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves
Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output - includes Auto Fast Idle System (AFIS)
High capacity liquid-cooling system enhances engine performance and durability - coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight
Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase
Plastic outer clutch cover and engine sprocket cover for reduced weight and noise
Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque

Chassis Features

Anti-lock Braking System (ABS) for maximum braking performance in wet riding conditions
Sleek fairing features dual 60/55W headlights with running lights and folding mirrors
Narrow, lightweight aluminum truss-style frame constructed with high-vacuum die-cast process for more consistent strength and fewer individual welded sections
Black-painted frame, swingarm, and wheels for more sport appearance
41 mm front fork with 130 mm of wheel travel provides a smooth, compliant ride
Link-type single-shock rear suspension with 7-way adjustable preload
Box-section aluminum swingarm is lightweight with high torsional rigidity
Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position
Single disc rear brake with 240 mm rotor
Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light
Steeply-angled tail section houses unique vertically-styled, high visibility LED taillight and compact rear fender
Large under-seat storage area, passenger grab-bar and tie-down hooks
Slim 4.5 gallon fuel tank with low fuel warning light
Hinged fuel tank swings up for easy access to the airbox and throttle bodies
Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels

Specifications

Engine: 645 cc (39.4 cu. in), 4-stroke, liquid-cooled, DOHC, 90? V-twin
Bore Stroke: 81.0 mm (3.189 in) x 62.6 mm (2.465 in)
Compression Ratio: 11.5 : 1
Fuel System: Fuel injection
Lubrication: Wet sump
Ignition: Electronic ignition (Transistorized)
Transmission: 6-speed constant mesh
Final Drive: DID525V8, 114 links
Overall Length: 2120 mm (83.5 in)
Overall Width: 730 mm (28.7 in)
Overall Height: 1170 mm (46.1 in)
Seat Height: 800 mm (31.5 in)
Ground Clearance: 155 mm (6.1 in)
Wheelbase: 1470 mm (57.9 in)
Curb Weight: 203 kg (445 lbs)
Suspension Front: Telescopic, coil spring, oil damped
Suspension Rear: Link type, coil spring, oil damped
Brakes Front: Disc brake, twin
Brakes Rear: Disc brake
Tires Front: 120/60ZR17M/C (55W), tubeless
Tires Rear: 160/60ZR17M/C (69W), tubeless
Fuel Tank Capacity: 17.0 L (4.5/3.7 US/Imp gal)
Color: Blue

Specifications

Engine
Engine Type	4-stroke, liquid-cooled, DOHC, 90 V-twin
Displacement	645 cc (39.4 cu. in.)
Bore and Stroke	81.0 x 62.6 mm (3.189 x 2.465 in.)
Cooling	Liquid-cooled
Compression Ratio	11.5 : 1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Chassis
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Disc brake, twin
Front Tire	120/60ZR17M/C (55W), tubeless
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Disc brake
Rear Tire	160/60ZR17M/C (69W), tubeless
Dimensions
Dry Weight	445 lbs. (203 kg)
Fuel Capacity	3.7 gal (17.0 l)
Wheelbase	57.9 in. (1470 mm)
Seat Height	31.5 in. (800 mm)
Transmission
Transmission	6-speed constant mesh
Final Drive	DID525V8, 114 links
General
Speedometer	LCD
Tachometer	Analog
Odometer	LCD
Colors	Blue

Compare Models

Chassis

Year	2009
Manufacturer	Suzuki
Model	SV650SF ABS
Style	Sport
MSRP*	$7,999.00
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Disc brake, twin
Front Tire	120/60ZR17M/C (55W), tubeless
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Disc brake
Rear Tire	160/60ZR17M/C (69W), tubeless
Dimensions
Dry Weight	445 lbs. (203 kg)
Fuel Capacity	3.7 gal (17.0 l)
Wheelbase	57.9 in. (1470 mm)
MPG
Seat Height	31.5 in. (800 mm)
Trail
Rake
Engine
Engine Type	4-stroke, liquid-cooled, DOHC, 90 V-twin
Displacement	645 cc (39.4 cu. in.)
Bore and Stroke	81.0 x 62.6 mm (3.189 x 2.465 in.)
Cooling	Liquid-cooled
Compression Ratio	11.5 : 1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
General
Speedometer	LCD
Tachometer	Analog
Odometer	LCD
Colors	Blue
Warranty
Transmission
Transmission	6-speed constant mesh
Final Drive	DID525V8, 114 links

Current Promotions

There are currently no promotions available for this product.
