Suzuki KingQuad® 400FS Camo MIDWEST HONDA SUZUKI KUBOTA SIOUX CITY, IA (800) 736-7956

Showcase » Suzuki » KingQuad® 400FS Camo

	Starting At: $5,549.00

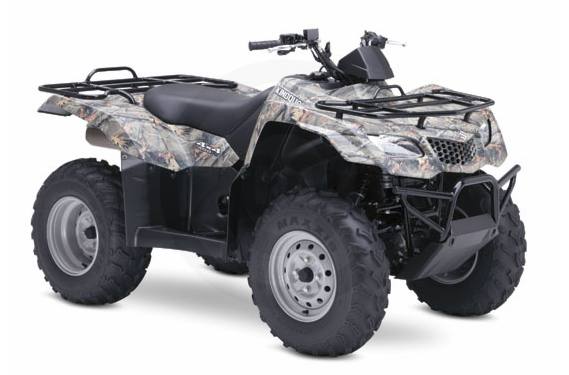

2008 Suzuki KingQuad® 400FS Camo

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Advantage® Max-4 HD™

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

When you're planning your next hunting or fishing trip, plan on taking along the ideal back woods companion: the KingQuad 400 4x4 Semi-Automatic Camo. With its five-speed transmission and automatic clutch, it combines sporty performance and convenient operation. It features REALTREE HARDWOODS HD® pattern that incorporates the latest advancements in camouflage artwork.

The KingQuad 400 Camouflage Edition: it's the outdoor companion you've been hunting for.

New Features

New angular and aggressive new bodywork featuring high clearance fenders, the distinctive KingQuad headlights and grill, a new t-shaped seat, and higlighted by a new large diameter steel tube bumper
New larger 4.2 gallon fuel tank for increased riding range and improved rider comfort
Large 190mm diameter front disc brakes combined with new front brake calipers featuring larger pistons and brake pads for improved braking performance.
New gate-type shift lever is now mounted on the left side providing simple and precise shifting in various riding conditions
New Maxxis tires featuring an aggressive dual stage tread pattern for consistent traction and a quiet ride are mounted on durable steel wheels

Key Features

Special Semi-Automatic version of the KingQuad400 featuring Advantage® Max-4 HDT camouflage bodywork

Engine Features

Dependable air/oil cooled, single cylinder, 4-valve, 4-stroke engine tuned for high torque output and quick acceleration. Gear-driven balancer shaft reduces vibration
High capacity oil-cooler ensures consistent engine operating temperature with a thermostat-controlled electric fan
KeihinT CVK32 carburetor provides smooth throttle response and high fuel efficiency - includes throttle pulley system designed for light throttle lever operation
Five-speed transmission with automatic clutch, high/low range and reverse - subtransmission and reverse controlled by a single automotive-style, fuel tank-mounted drive selection lever
Choose 2WD or 4WD operation with convenient handlebar-mounted control lever
Torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns
Electric and recoil starting with "in gear" starting capability - engine will start in any transmission setting by pulling the hand brake lever and pressing the starter button
CDI ignition and powerful 220 watt charging system with maintenance-free battery

Chassis Features

Styled for a big, strong appearance with high radius fenders, a rugged-style grill and large front bumper designed for easy winch installation
Compact instrument display including speedometer, odometer, tripmeter, and indicator lights for neutral, reverse and oil temperature
12V/120W electrical outlet mounted in left front fender - standard automotive-style outlet fits a wide range of electrical accessories
Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles
Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment
Independent double A-arm front suspension with class-leading 6.7 in. of wheel travel for a comfortable ride on all types of terrain
Swingarm-style rear suspension with oil-damped shock absorbers provide 6.7 in. of wheel travel and 9.3 in. of ground clearance
High-capacity racks and towing capacity, plus 4.0 liter storage box now mounted and protected under the seat

Specifications

Engine: 376cc, SOHC, four-stroke, single cylinder, air/oil-cooled
Bore Stroke: 82.0 x 71.2mm
Compression Ratio:9.0:1
Fuel System: KeihinT CVK32
Lubrication: Wet Sump
Ignition: CDI
Transmission: 5-speed w/automatic clutch, reverse, high/low range sub-transmission, 2WD/4WD front differential
Final Drive: Shaft drive
Overall Length: 2175mm (85.6 in.)
Overall Width: 1145mm (44.1 in.)
Overall Height: 1200mm (47.2 in.)
Seat Height: 830mm (32.7 in.)
Ground Clearance: 235mm (9.3 in.)
Wheelbase: 1270mm ( 50.0 in.)
Dry Weight: 262kg (577 lbs.)
Suspension Front: Independent, double A-arm, oil-damped
Suspension Rear: Swingarm-type, oil-damped
Brakes Front: Dual hydraulic disc
Brakes Rear: Single mechanical drum
Tires Front: AT 25 x 8-12
Tires Rear: AT 25 x 10-12
Fuel Tank Capacity: 15.0 liter (4.0 gal.)
Color: Advantage® Max-4 HDT

NOTES:

Minimum Age: 16 Years Old.

Specifications and features are subject to change.

Specifications

Engine
Engine Type	SOHC, four-stroke
Displacement	376 cc
Bore x Stroke	82.0 x 71.2 mm
Cylinders	Single
Engine Cooling	Air/oil-cooled
Fuel System	KeihinT CVK32
Starting System	Ignition: CDI
Chassis
Front Suspension	Independent, double A-arm, oil-damped
Front Travel	6.7 in.
Front Brake Type	Dual hydraulic disc
Front Tires	AT 25 x 8-12
Rear Suspension	Swingarm-type, oil-damped
Rear Travel	6.7 in.
Rear Brake Type	Single mechanical drum
Rear Tires	AT 25 x 10-12
Frame	Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
Dimensions/Capacities
Dry Weight	577 lbs (262 kg)
Towing Capacity	High-capacity
Fuel Capacity	4.0 gal (15.0 l)
Ground Clearance	9.3 in. (235 mm)
Machine Dimensions (LxWxH)	85.6 x 44.1 x 47.2 in. (2175 x 1145 x 1200 mm)
Wheelbase	50.0 in. (1270 mm)
Drive Train
Final Drive	Shaft drive
Transmission	5-speed w/automatic clutch, reverse, high/low range sub-transmission, 2WD/4WD front differential
General
Speedometer	Compact instrument display
Odometer	Compact instrument display
Lighting	Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment
Colors	Advantage® Max-4 HD™
Warranty	6 month limited warranty

Compare Models

Chassis

Year	2008
Manufacturer	Suzuki
Model	KingQuad® 400FS Camo
Style	Utility
MSRP*	$5,549.00
Front Suspension	Independent, double A-arm, oil-damped
Front Travel	6.7 in.
Front Brake Type	Dual hydraulic disc
Front Tires	AT 25 x 8-12
Rear Suspension	Swingarm-type, oil-damped
Rear Travel	6.7 in.
Rear Brake Type	Single mechanical drum
Rear Tires	AT 25 x 10-12
Frame	Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
Dimensions/Capacities
Dry Weight	577 lbs (262 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity	High-capacity
Fuel Capacity	4.0 gal (15.0 l)
Ground Clearance	9.3 in. (235 mm)
Machine Dimensions (LxWxH)	85.6 x 44.1 x 47.2 in. (2175 x 1145 x 1200 mm)
Wheelbase	50.0 in. (1270 mm)
Drive Train
Drive Train
Final Drive	Shaft drive
Transmission	5-speed w/automatic clutch, reverse, high/low range sub-transmission, 2WD/4WD front differential
Engine
Engine Type	SOHC, four-stroke
Displacement	376 cc
Bore x Stroke	82.0 x 71.2 mm
Cylinders	Single
Engine Cooling	Air/oil-cooled
Fuel System	KeihinT CVK32
Starting System	Ignition: CDI
Alternator
General
Speedometer	Compact instrument display
Tachometer
Odometer	Compact instrument display
Lighting	Twin 30/30W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment
Colors	Advantage® Max-4 HD™
Warranty	6 month limited warranty
